10mm barrier testing

even more unscientific goofing around

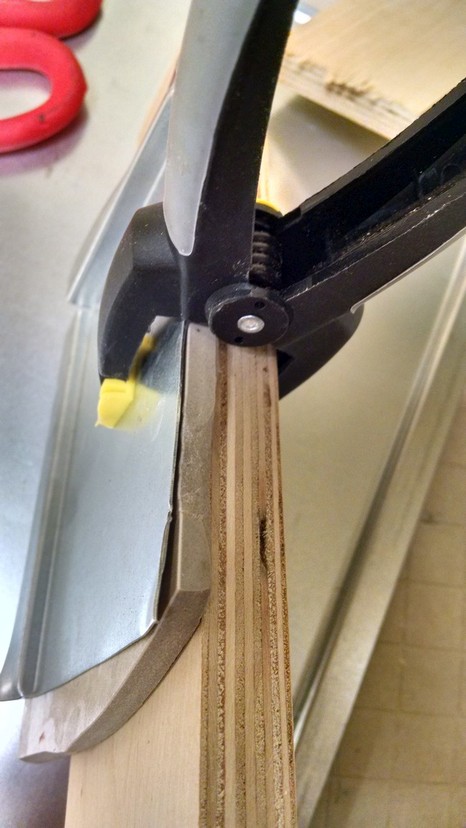

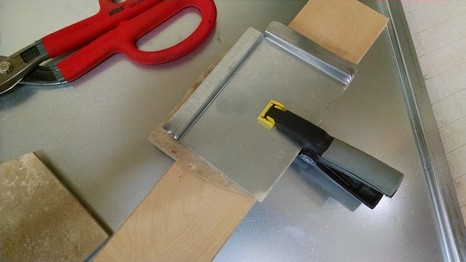

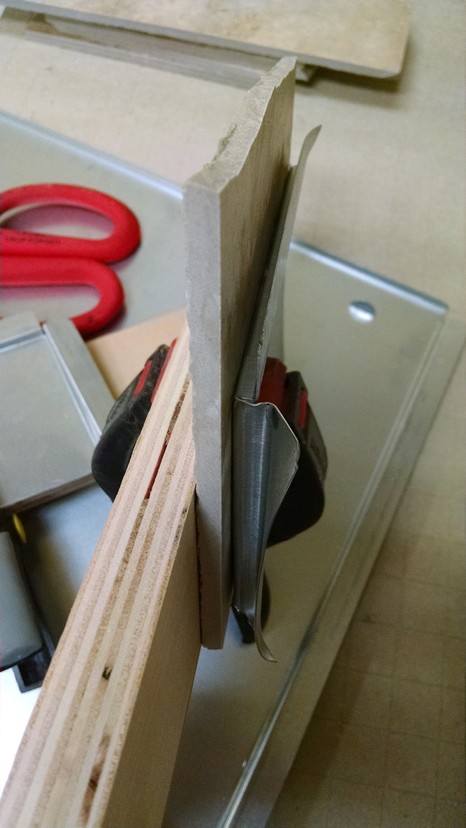

Barrier Box - V2

Same format as before, just a little tougher: 13 ply Baltic Birch faced with 1/4" tile and 24 gauge steel.

 10mm barrier testing V2 PT 1

10mm barrier testing V2 PT 1

10mm barrier testing V2 PT 1

1st round loads to test:

165 Golden Saber @ 1,343 fps - fired, not recovered
200gr XTP @ 1,256 fps


 Velocities are estimates taken from previous chrono sessions.

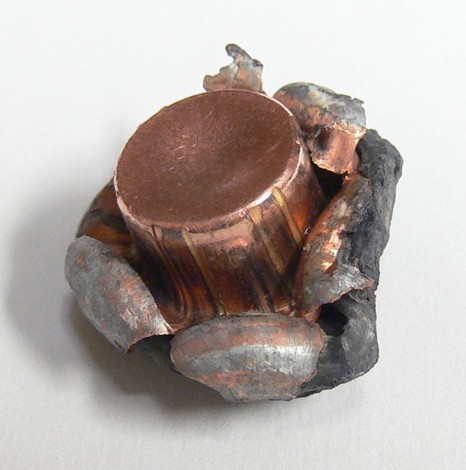

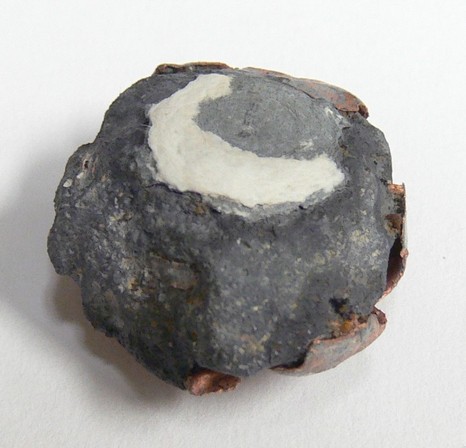

200 XTP 204.48 retained (gained), .803 max diameter
10mm barrier testing V2 Hornady 200gr XTP

10mm barrier testing V2 Hornady 200gr XTP

Bullet expansion before passing through barrier.

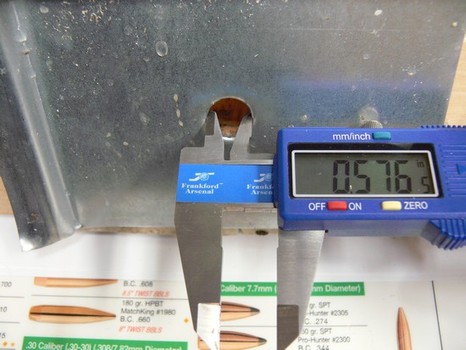

10mm barrier testing V2 XTP entry hole

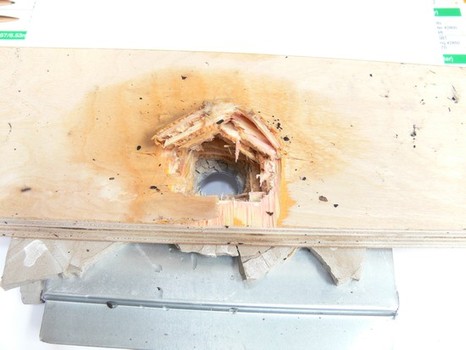

10mm barrier testing V2 XTP exit hole

Loaded to test:

155gr XTP @ 1,410 fps
165gr MG JHP @ 1,304 fps
165 Golden Saber @ 1,343 fps
180gr MG JHP @ 1,282 fps
180gr Gold Dot @ 1,229 fps
180gr PRVI JHP @ 1,214 fps
180gr Remington JHP @ 1,202 fps
180gr Winchester JHP @ 1,240 fps


Part 2
